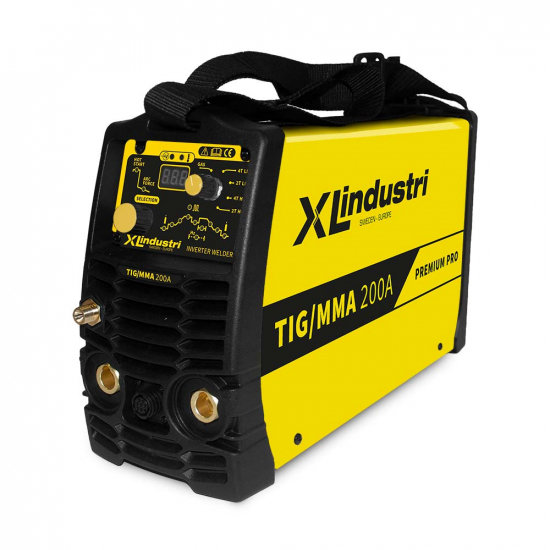

Premium Pro Svets TIG/MMA-200A
This combination TIG / MMA-200A in the Premium Pro category is suitable for welding aluminum, stainless steel, titanium and other metals. In this Proffs product, all components are tested individually for the highest performance and quality. It is tested and approved for use in nuclear power plants.
MMA is 200A and TIG is 175A. It comes with a very reliable IGBT inverter. A model with many nice features.

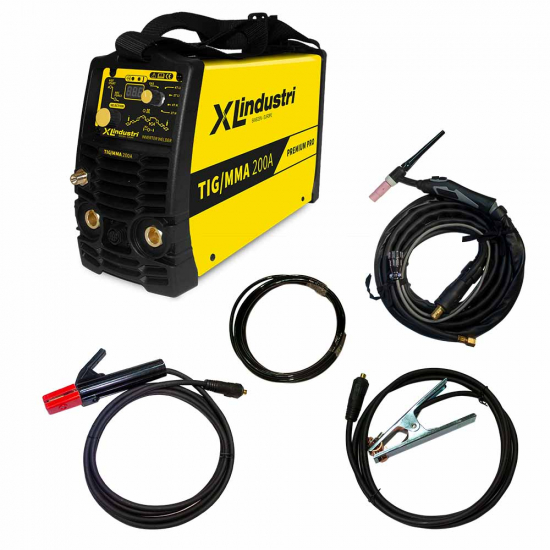

Included accessories:
• Ground cable 16mm2 3M long with euro connector 35-70mm2 and ground terminal 300A.
• Welding cable 16mm2 3M long with euro connector 35-70mm2 and electrode holder 200A
• PRO17 UP / Down PARWELD 3M 8pin.
• 4m gas pipe, hose clamp Φ5, copper female connector
Teknisk data:
| VIKT | 12 kg |
|---|---|
| DIMENSIONER | 420 × 270 × 280 cm |
| ARTIKELNR | PP-0304-00 |
| PRODUKTBESKRIVNING | Premium Pro Magic TIG 200 |
| STRÖMFÖRSÖRJNING | 1~200/220/230/240±10% |
| FREKVENS | 50-60HZ |
| FUNKTION | TIG/ MMA |
| NOMINELL INGÅNG KW | TIG: 4.2 | MMA: 5.3 |
| MÄRKSTRÖM (A) | TIG: 28.6 | MMA: 36.6 |
| EFFEKTIV STRÖM (A) | TIG: 14.3 | MMA: 20 |
| DRIFTCYKEL 40C 10MIN | (TIG) 25% 200A, 60% 120A, 100% 100A | (MMA): 30% 170A, 60% 120A, 100% 100A |
| LASTSPÄNNING (V) | 27 (kontrollerad) |
| SVETSSTRÖMOMRÅDE (A) | 5-200 |
| EFFEKTIVITET (%) | 86 |
| KYLSYSTEM | AF |
| VARMSTART | Ja |
| BÅGKRAFT | Ja |
| ÖVERSTRÖMSSKYDD | Yes |
| STRÖMGENERATOR KOMPATIBEL | JA |
| IP-KLASS | 23 |
